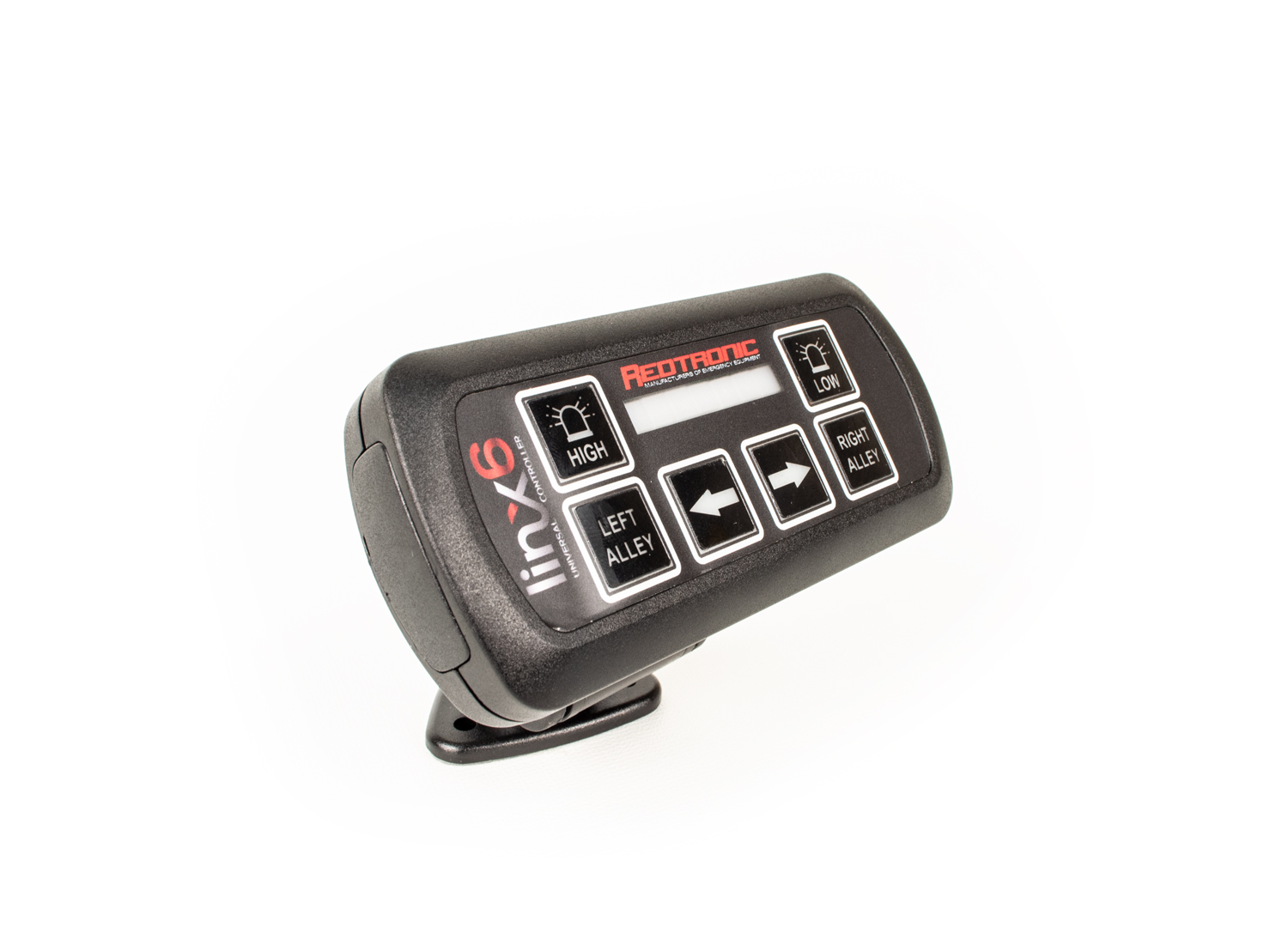

REDTRONIC - Linx6 Universal Controller

		(0 reviews)

24%

Product code:

LINX6

The LINX6 is a 6-way dynamic universal controller. This switched output is capable of switching all types of load applications including resistive, inductive and capacitive. The primary purpose is to switch Redtronic lighting and audible products and is ideal for traffic director control.

The LINX6 consists of 6 independently controlled outputs, two with a high current switching output of 10A each and four with a maximum switching of 2A per output and an overall limit across the 6 outputs of 23A.

The outputs are monitored and if overcurrent is detected the outputs are immediately switched off. A fault will be indicated with 3 flashes and 3 beeps. The output cannot be re-enabled until the LINX6 has been power cycled.

The end user has the ability to place legends on the keys to indicate what the output does. There is also an ability to change the activation colour and mode of the switches (the default is red and latching). This allows the end user to customise the LINX6 to fit their needs

Market price:	£ 357.60
exc VAT £ 224.99 including VAT £ 269.99

Select Options Below:

Quantity

Ask a question about this product

Extra Detail
Send to friend
Related products
Customers also bought
Customer feedback

6 dynamic RGB switches
Switch 1 & 2 rated to 10 amp (max) each, limited to 15 amps overall
Switches 3,4,5,6 rated to 2 amp (max) each, limited to 8 amps overall
Overall global limit 23amps
User configurable latching or momentary functions
User configurable ‘activation’ switch colour
(red, amber, green, blue & white)
User configurable traffic director LED signal bar (can be deactivated)
User configurable back light & activation switch colour
Dynamic hierarchy switch selection (parent & child configurable)
Dynamic master switch selection
Dynamic 999 & kill switch featureoActivate/deactivate audible buzzer
Factory reset feature
Over current monitor and deactivation feature (3 flashes & beeps)
Automatic 90 min sleep mode & single switch wake-up feature
3000mm rear cable
Standard transparent decal labels included
Mountable fixing kit included
2 year warranty
8 - 30 volt operation
IP52 sealed
EMC/R10 compliant
Manufactured in the United Kingdom
