REDTRONIC - S8000 CONTROL SYSTEM

The handset has been designed to be completely user friendly with a simple setting procedure – each key can be set with a ‘latching or momentary’ function via a switch on the main control board – you can also set vehicle voltage and ‘999’ functionality with a simple dipswitch selection – this is a major benefit of using the S8000 - unlike many other systems on the market, there is no need for a computer to configure the controller.

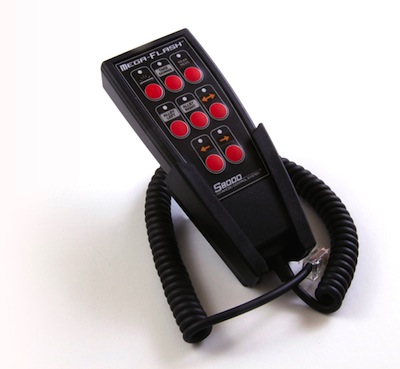

The unit can either be handheld or fixed format and will come complete with a cradle for the keypad. The S8000 control box can be mounted elsewhere in the vehicle and is linked to the keypad via a standard RJ45 connector system.

The major benefit to utilising the Redtronic S8000 control system is that it completely eliminates the requirement of relays. The on-board control circuitry uses MOSFET packages to allow high current switching via software control - not only does this decrease the installation time and wiring, it also significantly increases the reliability of the product.

S8000 SPECIFICATION

• Voltage: 10-30v DC
• Switch contacts: 8
• Amp rating: 4 x 15 amp outputs, 4 x 5 amp outputs
• Low operating current on standby
• Auto shutdown on overload
• Auto shutdown at critical supply levels(allows vehicle restart on low voltage)

• ‘999’ optional switch(activate multiple functions via a single switch)
• LED backlighting
• LED switch indication
• Piezo buzzer sounder (can be deactivated)
• Walk Test activation (tests all channels)
• Minimal wiring (Max 13 cables)
• RJ45 Connection to keypad
• Keypad size: 140mm(l) x 60mm(w) x 30mm(h)
• Controls size: 156mm(l) x 118mm(w) x 32mm(h)
• 2 Year Full UK Warranty

                  S8000                                                          S8000PA

All Redtronic (Mega-Flash) Products are made to order - 7/9 working days for delivery
